HDS LUMINA

Lumina is an Under the Sink water system, meaning a system that is installed under the sink and is designed to integrate more cleanly and neatly into the kitchen environment.

The heating temperature can be adjusted within a range of 85°C to 95°C, as needed.

The cooling system is based on a compressor and is designed to provide stable cooling as part of the under-sink system.

The noise level during operation is less than 45dB, measured about half a meter in front and at half the height of the unit.

The normal working pressure of the system is 2.5 kg/cm2. In low or high pressure situations, a dedicated adjustment to the system may be necessary.

Yes. A dedicated power line must be used for the system, with proper grounding, and the minimum current per outlet is 15A.

The system includes advanced protection mechanisms, including dry heating protection, overheating protection, a safety thermostat, high-temperature heating system shutdown, and electric shock protection with full grounding of the system components.

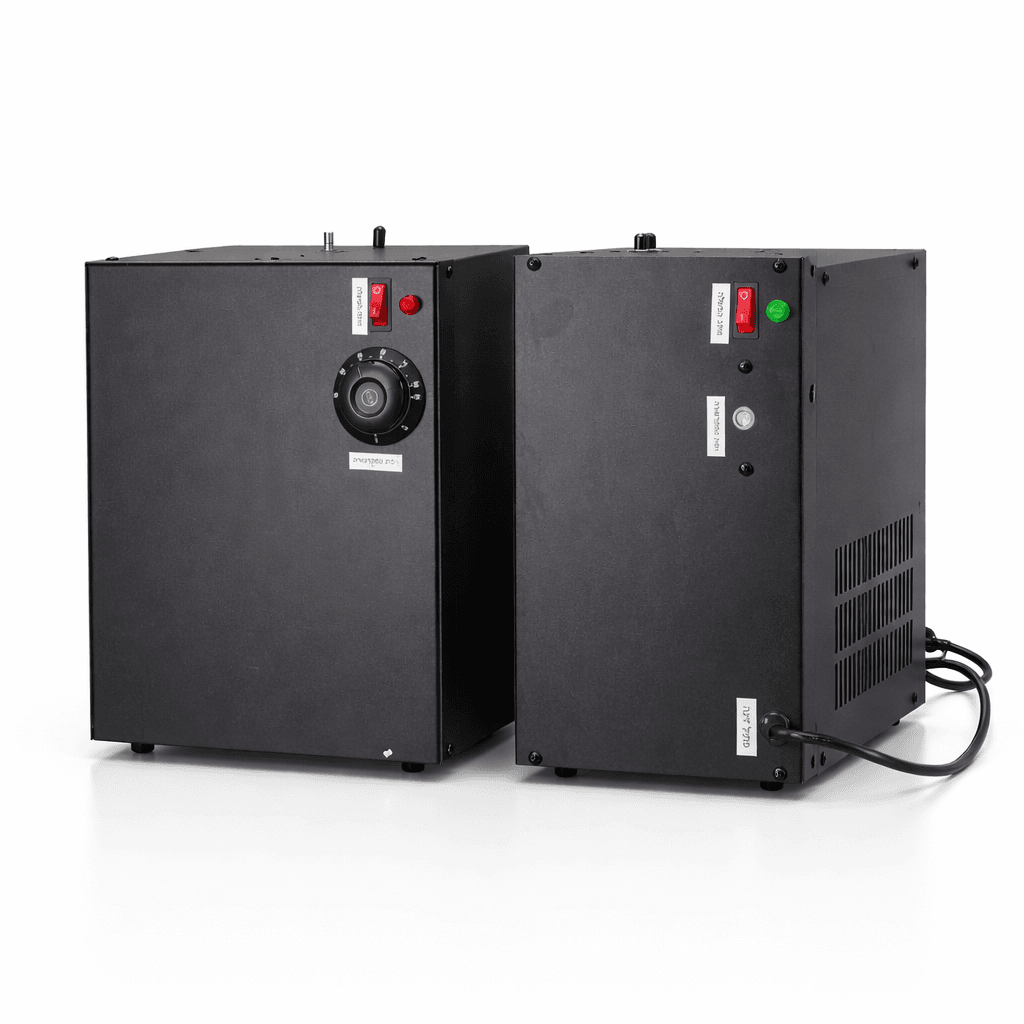

Cooling unit: width 37.5 cm × depth 16.5 cm × height 29.5 cm, weighing 3 kg. The heating unit has separate dimensions, intended for installation in the lower cabinet.

Lumina provides approximately 40–50 cups of hot and cold water per hour, depending on ambient temperature and usage.

The 2.5-liter cold water tank provides approximately ten glasses of cold water continuously, before the system returns to full cooling.

Yes. The 4-liter hot water tank is suitable for filling pots and intensive domestic use.

The filter/filter compatible with the HDS Lumina is the H401 Heavy Duty — a filter with a Heavy Duty structure containing granular activated coconut carbon (GAC) combined with polyphosphate, to reduce chlorine, off-tastes, particles and balance scale. Filtration level of 2 microns and capacity of up to 1,000 liters. The filter meets MATHI and NSF Material Inside standards, and the recommended replacement cycle is 9–12 months depending on the frequency of use and water hardness. Using the original filter ensures clear and tasty water, extends the life of the system and maintains a low cost per liter throughout the year.

Yes. The faucet handle includes a dedicated locking mechanism for hot water (Child Lock), which prevents accidental opening of the hot water flow.

Yes. Lumina is certified by the Standards Institute of Israel (SISI).

The system operates on 220V and consumes 120W of power.

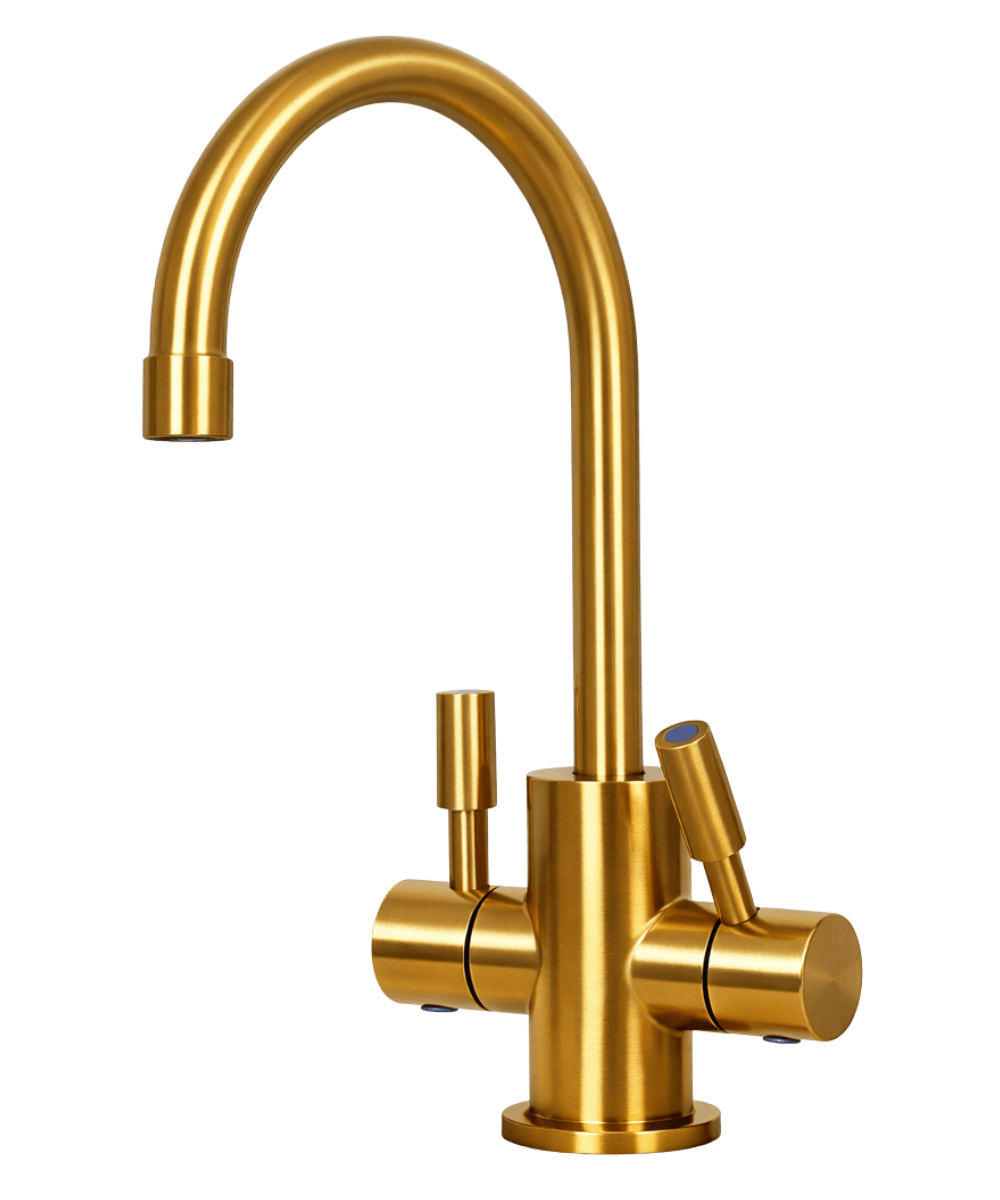

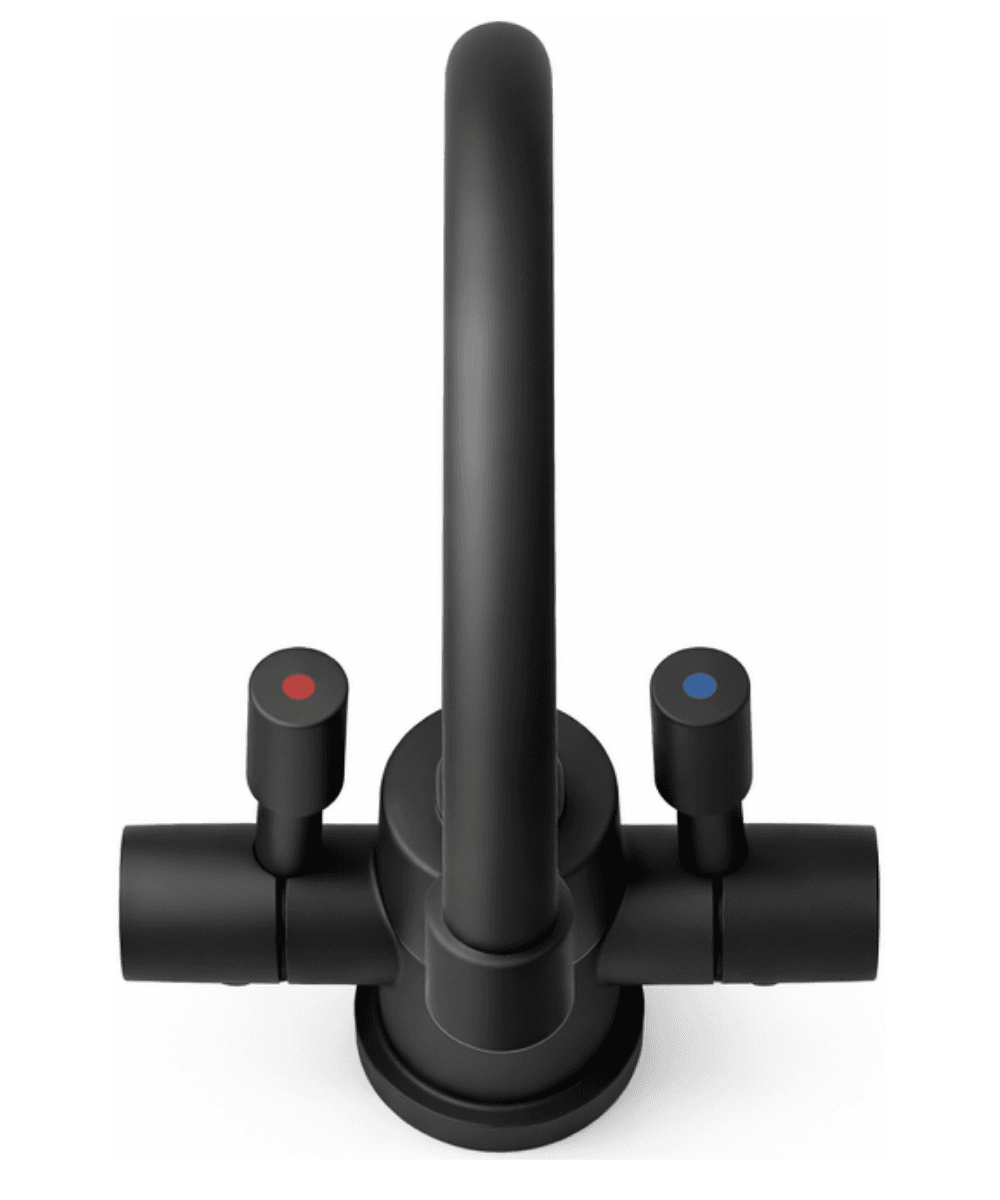

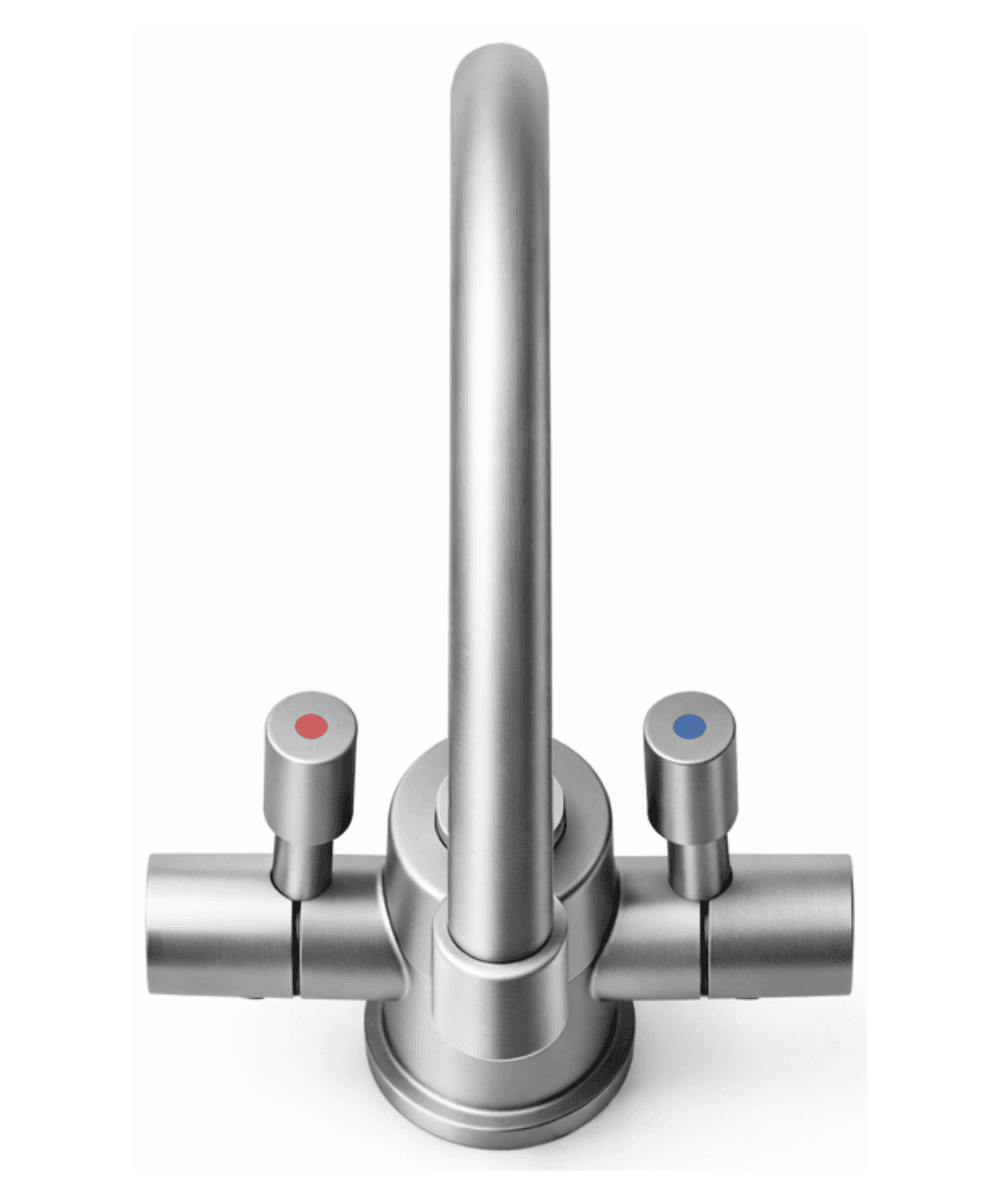

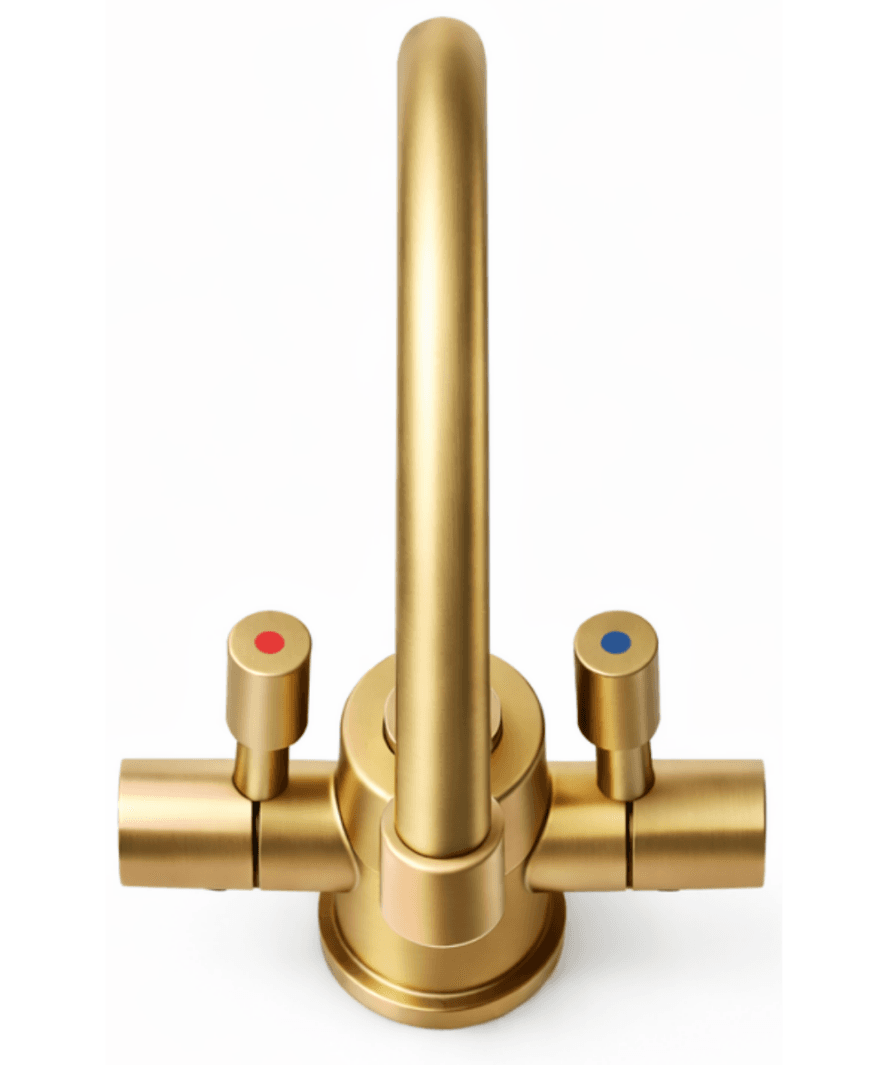

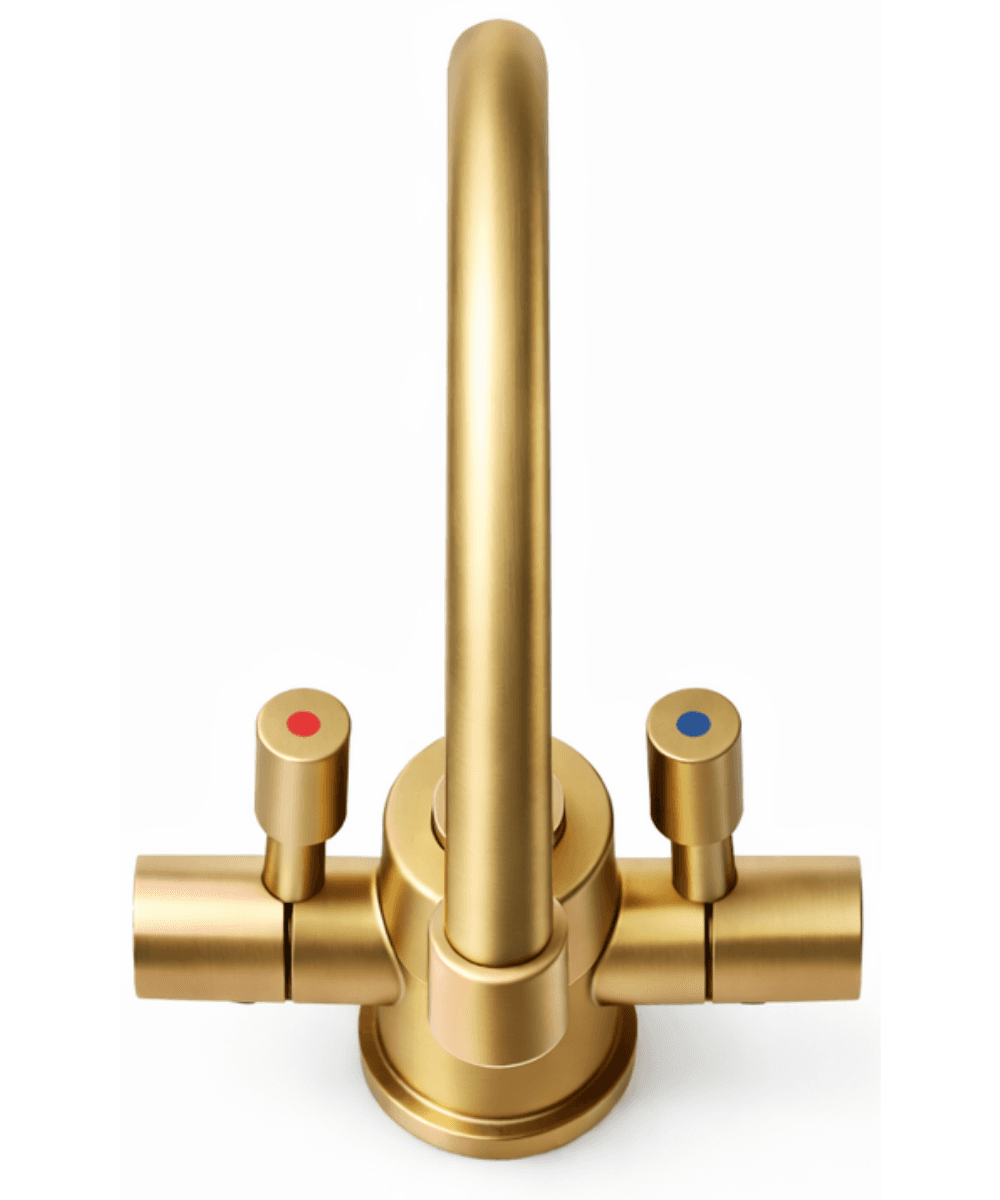

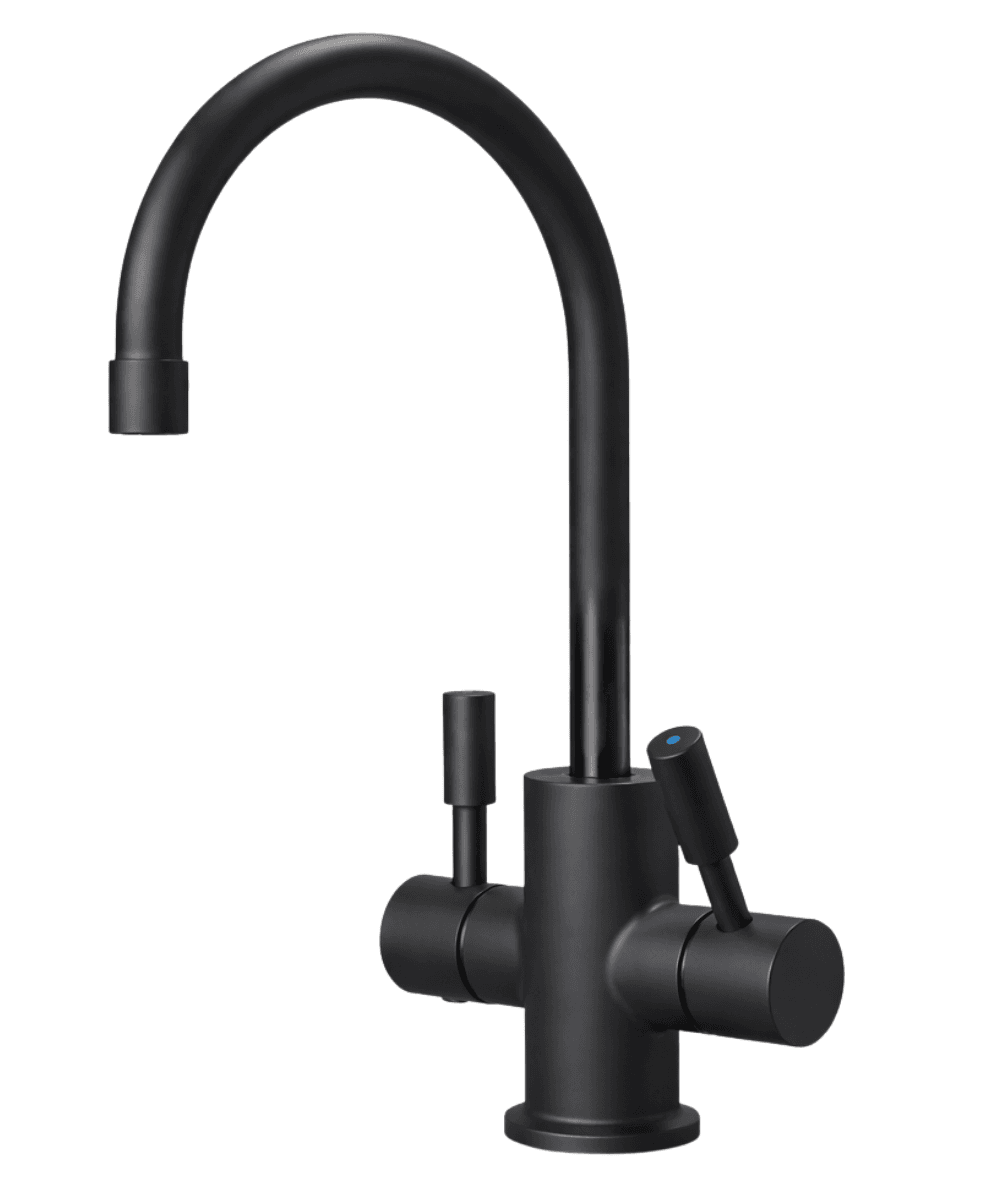

The faucet is available in three premium finishes: matte black, brushed stainless steel, and brushed gold.
